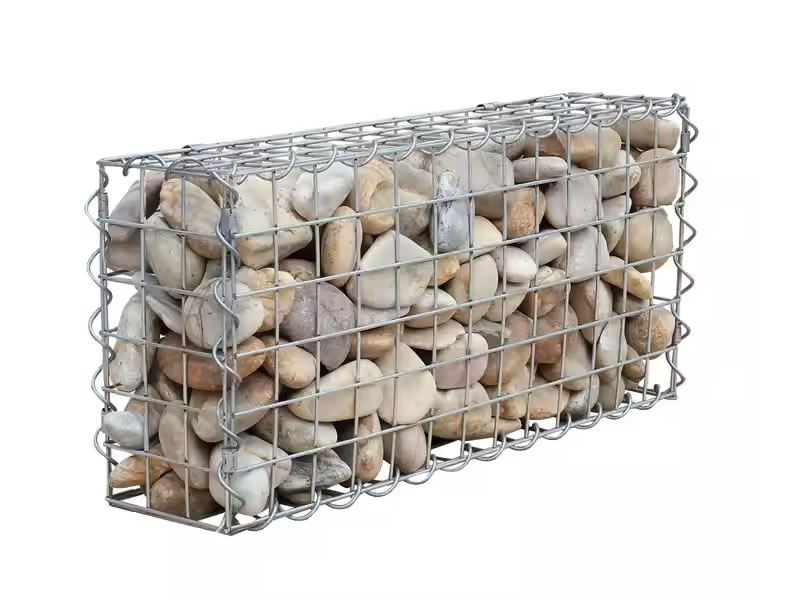

Welded Gabion Box Product Description:

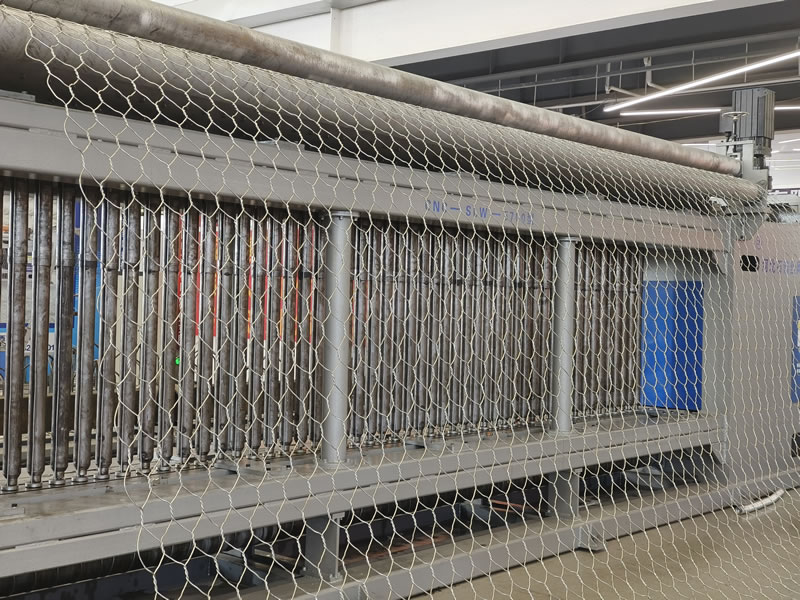

Gabion basket also known as gabion box, are made of corrosion-resistant, high-strength, and ductile galvanized wire or PVC-coated wire through mechanical weaving.
| Specifications as below/custom sizes are also available: | |||
| Mesh opening (mm) | Wire diameter (mm) | PVC wire diameter before coated/After coated (mm) | Gabion size (m) |
| 60×80 | 2.0-2.8 | 2.0-2.8 | 1 x1x0.5 |
| 80×100 | 2. 2-3.2 | 2. 2-3.2 | 1x1x1 |
| 100×120 | 2.4-3.5 | 2.4-3.5 | 2x1x1 |
| 120×150 | 2.7-4.0 | 2.7-4.0 | 4x1x4 |
| Remark:(PVC gabion) Max wire diameter 4.0mm, max selvedge wire 4.5mm | |||
| Gabions type: 1.stainless steel gabion 2.galvanized gabion 3.PVC coated gabion | |||
Professional design the system for customers to do a variety of different specifications of products, welcome to inquire.
Packaging
1.provide save time cost and manage the cost of packaging program.
2.According to customer requirement.
Gabion Box Product Description:
Gabion mesh, Gabion box, Gabion basket, Gabion mat, Hexagonal mesh gabion, PVC coated gabion box, Galfan gabion basket, Gabion, Gabion mesh, Gabion retaining wall.
Gabion basket wire mesh material: Low carbon steel wire/Heavy duty galvanized wire/ZnAl (Galfan) coated wire/PVC or PE coated wire.
Gabion basket surface treatment: Hot dip galvanizing, Heavy zinc hot dip galvanizing, Galfan, Electro galvanizing, PVC coating, etc.

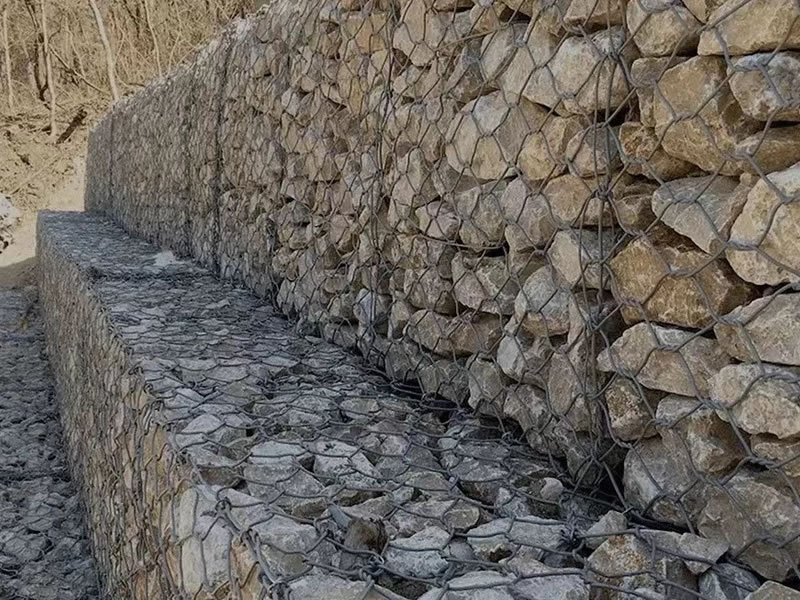

Gabion basket is widely used in slope protection, foundation pit support, mountain rock support, river and dam scour protection. We design and supply China Gabion Box made of heavy duty hexagonal wire mesh.
| Aperture(mm) | Wire Diameter(mm) | Pvc Coated Wire DiameterInner/outer (mm) | Gabion Basket Size(m) | Gabion Mattress Size(m) |
| 60×80 | φ2.0-2.8 | φ2.0/3.0-2.8/3.8 | 1x1x0.5m1x1x1m2x1x0.5m2x1x1m3x1x0.5m3x1x1m4x1x0.5m4x1x1mavailable custom | 1x1x0.3m2x1x0.3m3x1x0.3m4x1x0.3m4x2x0.3m6x2x0.3mavailable custom |
| 80×100 | φ2.2-3.2 | φ2.2/3.2-3.0/4.0 | ||
| 80×120 | φ2.2-3.2 | φ2.2/3.2-3.0/4.0 | ||
| 100×120 | φ2.4-3.5 | φ2.4/3.4-3.2/4.2 | ||
| 100×150 | φ2.4-3.5 | φ2.4/3.4-3.2/4.2 | ||
| 120×150 | φ2.7-4.0 | φ2.7/3.7-3.5/4.5 |
Gabion Mattress
Gabion Box
Pvc Coated Gabion Box
Wire mesh diameter: 2.0mm
Wire mesh diameter: 2.7mm
Selvedge wire: 3.4mm

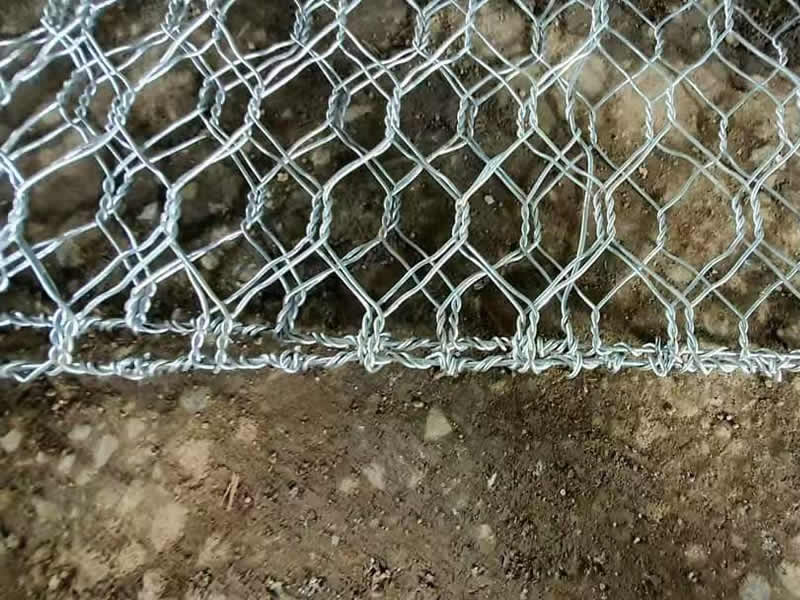

Hexagonal gabion mesh uses:
· Control and guide rivers and floods · Flood discharge and diversion dams
· Rockfall prevention · Soil and water loss prevention
· Bridge protection · Soil reinforcement structure
· Coastal defense engineering · Port engineering
· Retaining wall · Road protection
