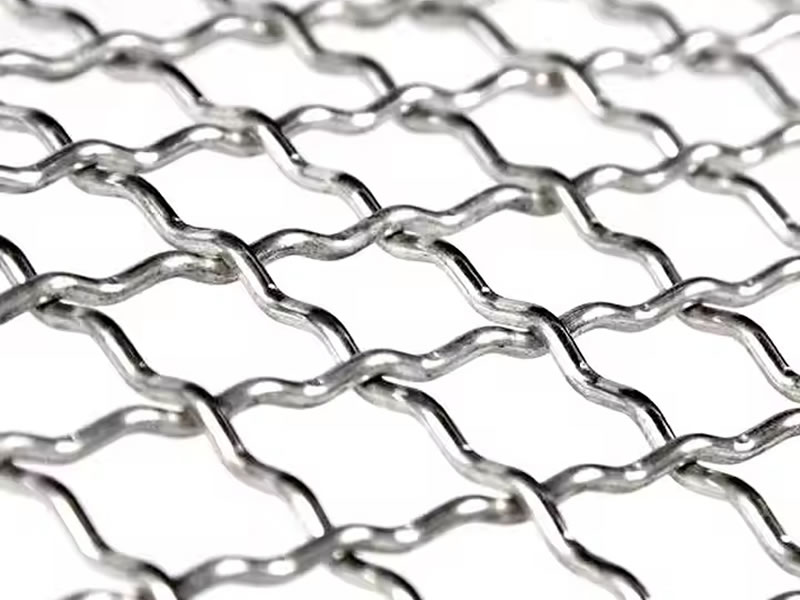

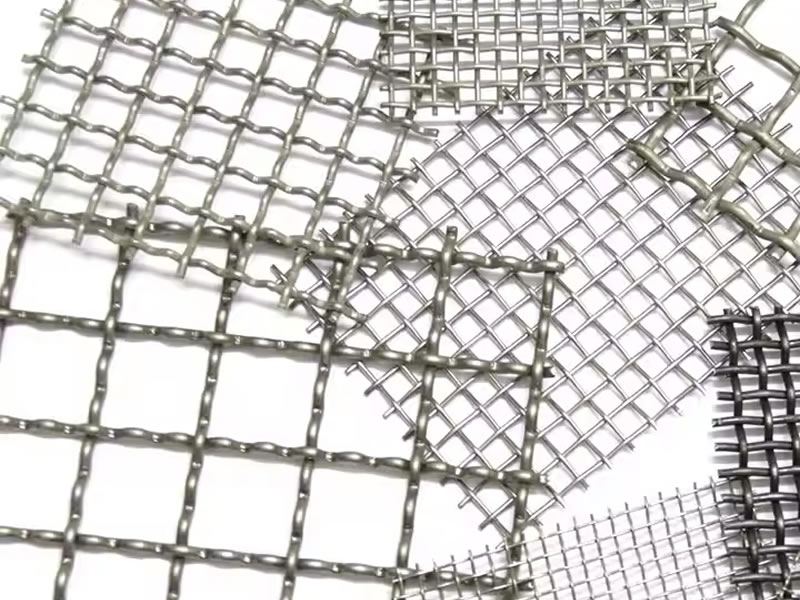

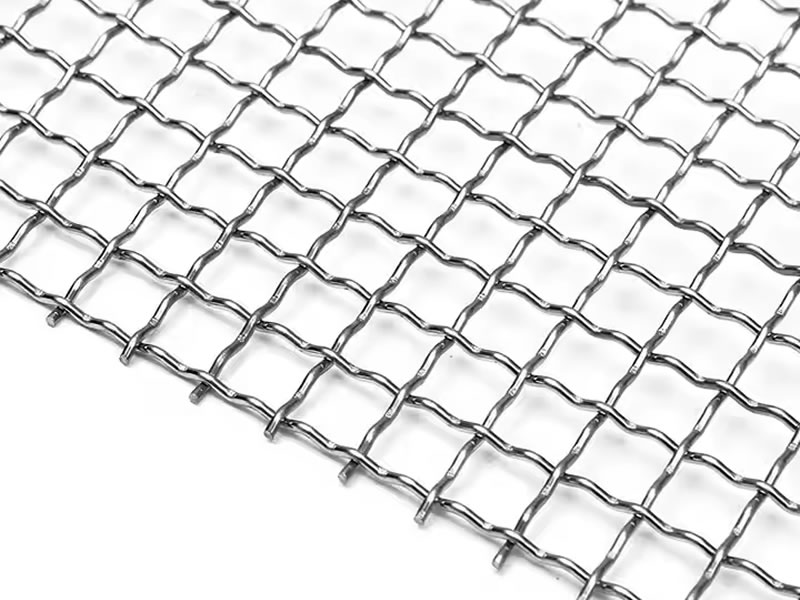

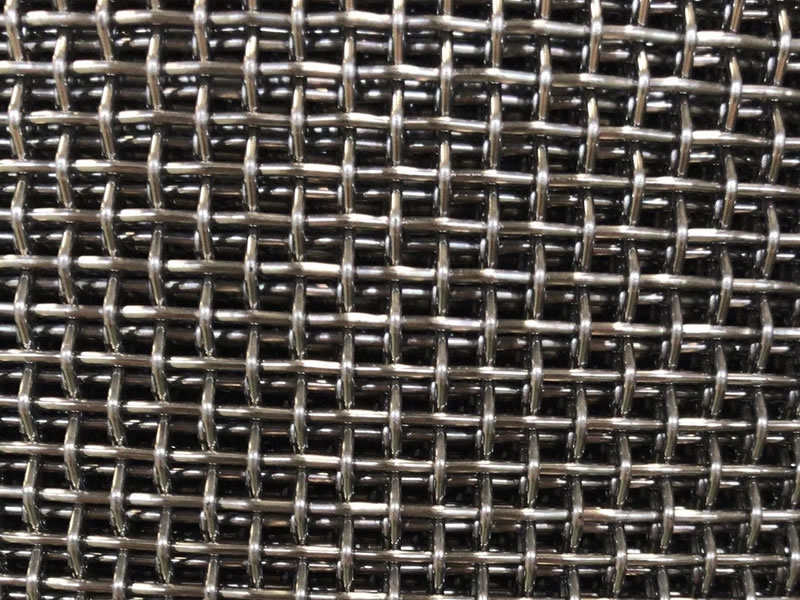

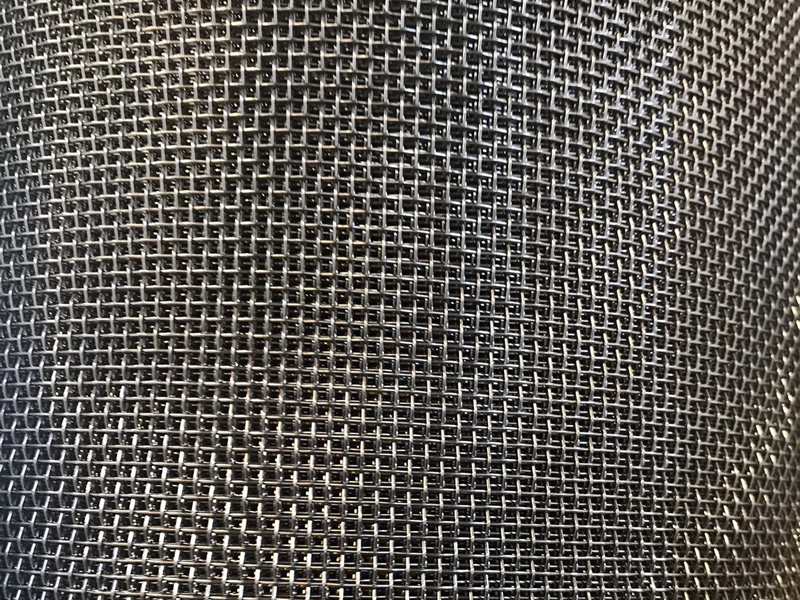

Square Wire Mesh Product Description：
1. Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc
2. Wire Diameter: 0.015-2.8mm
3. Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
4. Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.
5.Features:
Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life
6.Application:
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
Product Details:

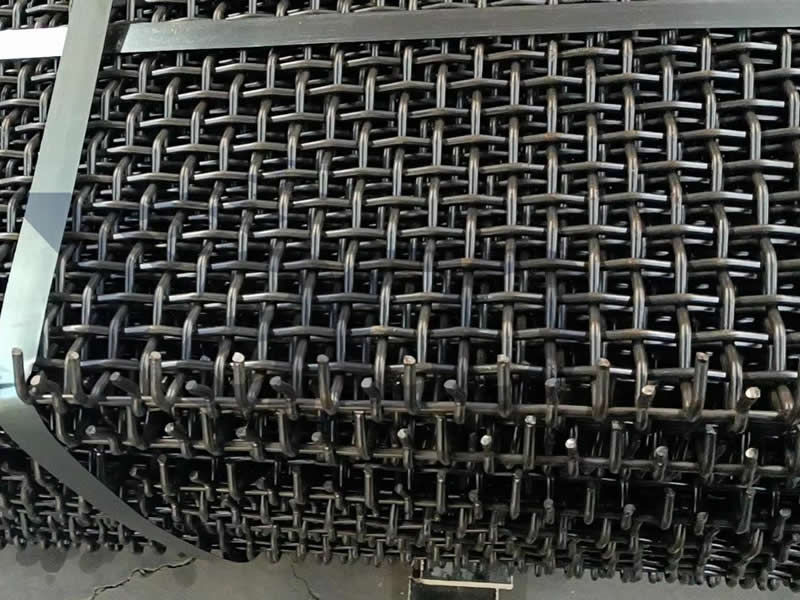

Crimped Wire Mesh Product Description：
Mining screen, also known as rock crusher screen, vibrating screening screen, crusher screening screen. Mining screens are usually made of 65MN wires of the same diameter, which are curled to form precise square openings and achieve maximum rigidity.
Its high tensile strength, excellent vibration resistance and long service life enable it to obtain accurate screening results and services at the best price, so 65MN curled wire mesh is the perfect choice for rock crusher screens and mining screens.
| 65MN Material Chemical Composition | ||||||
| Material | C | Si | Mn | Cr | Ni | Cu |
| 65Mn steel Example: 6.5mm | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.25 | ≤0.30 | ≤0.25 |
| 0.66 | 0.25 | 0.98 | 0.04 | 0.01 | 0.03 | |
Different edge types Heavy duty crimped mesh material is high strength steel wire, 45# steel wire, 65Mn steel wire. It is usually used for screening stones and sand in mines, coal industry. The mesh plates have different edges.
Specification：
We can customize the hole size according to your requirements

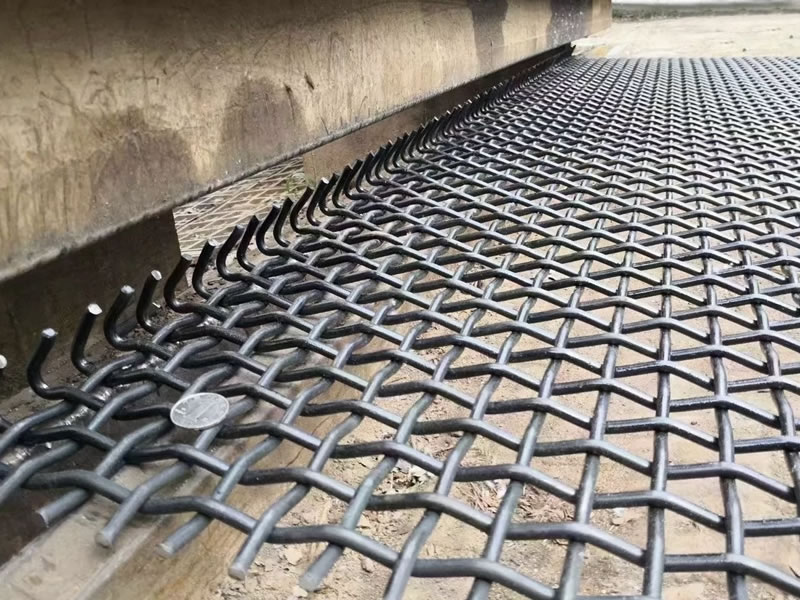

Vibrating screen mesh details:
| Material | High tensile manganese steel. |
| Wire diameter | 1.5mm – 13mm |
| Aperture/opening | 2mm – 110mm. |
| Surface finishing | Mill finish, Anti-rust oil spraying, PVC coating |
| Weaving type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
| Size | in sheet or in roll, width up to 6meter, length up to 100meters. |
We can provide different types of woven wire mesh: Crimped wire mesh rolls, woven wire mesh sheets, vibrating screens with or without hooks
Application:
Manganese steel vibrating screen is widely used in mining, quarrying, aggregate industry to screen various sizes of sand, gravel, coal, stone, rock, metal materials and other ore materials.
