BRC Fence Details:
BRC Fence specifications:
| Material | Low Carbon Steel Wire |
| Surface treatment | hot-dipped galvanized or powder coating |
| Wire diameter | 4/4 5/5/6 mm |
| Opening size | 50×150 mm.75×300 mm,75×200 mm |
| Height | 900 to 2400 mm |
| Width | 1500 to 3000 mm |
| Color | white, red, green, yellow and so on |
| Height (mm) | Width (mm) | Opening sizes (mm) | Wire diameter (mm) |
| 900 | 2200 or2400 | 5 | |
| 1200 | 2200 or 2400 | 5 | |
| 1500 | 2200 or2400 | 5 | |
| 1800 | 2200 or 2400 | 50×150 | 5 |
| 2100 | 2200 or 2400 | 5 | |
| 2400 | 2200 or 2400 | 5 | |
| 900 | 2250 or 2400 | 5 or 6 | |
| 1200 | 2250 or 2400 | 5 or 6 | |
| 1500 | 2250 or 2400 | 75×200 | 5 or 6 |
| 1800 | 2250 or2400 | 75×300 | 5 or 6 |
| 2100 | 2250 or 2400 | 5 or 6 | |
| 2400 | 2250 or2400 | 5 or 6 |
BRC Fence Features and Advantages:

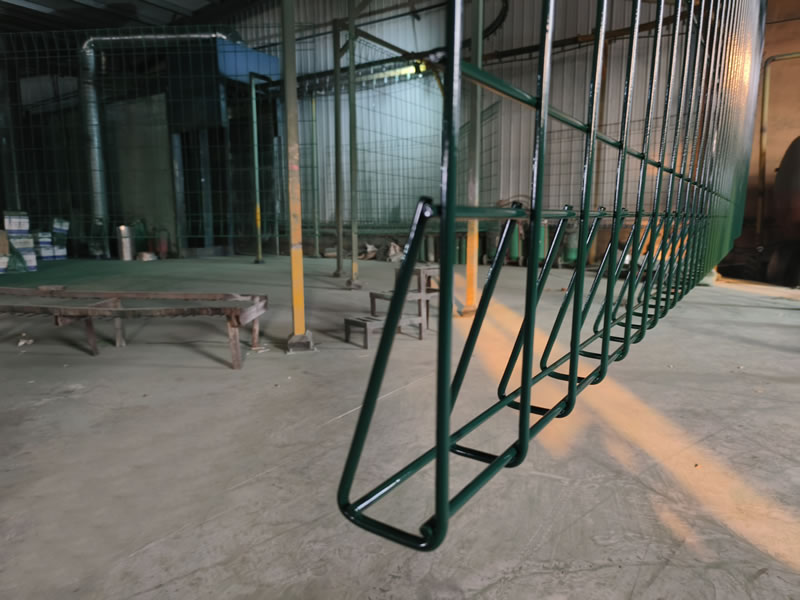

★ Hot Dip Galvanized Powder Coated Roll Top Triangle Curved BRC Welded Wire Mesh Fence BRC fence can also be called roll top fence. It is a special welded wire mesh fence. It is made by bending the top and bottom on the basis of ordinary welded wire mesh fence.

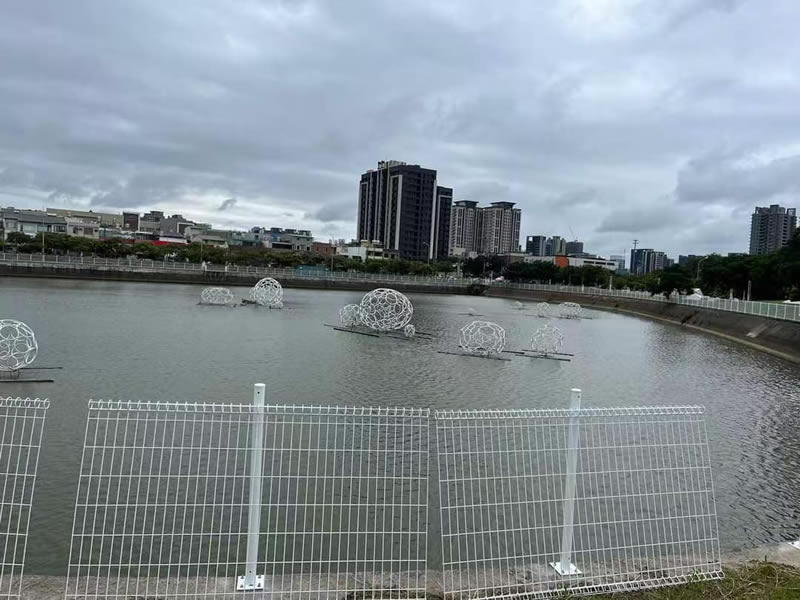

★ Application BRC fence is widely used for the protection of airports, ports and harbors, for the partition and protection of urban buildings including gardens, lawns, zoos, swimming pools and lakes, roads and residential areas, for the protection and decoration of hotels, restaurants, supermarkets, etc.
Roll Top fence is a popular welded mesh panel with a rolled top and bottom edge meaning no sharp or raw edges. Roll top fence also called BRC fence. It incorporates user friendly top and bottom “triangle” edges to give enhanced safety and rigidity to the fence. It is ideal for use in schools, parks and playgrounds, sports, stadiums, utilities etc.
BRC fence also called roll top fence in some region. Its main market is in Singapore and other southeast Asia countries. Chinese supplier called the BRC fence to be Korean fence because there also have a big market of BRC fence in South Korea.
Material: Low carbon steel wire, Galvanized wire
Surface treatment:
1. Hot dipped galvanized and powder coated
2. Electro galvanized and powder coated
3. Hot dipped galvanized
Color: Green RAL6005 and Black RAL9005. Other colors are available on request.
Powder coating: min. 100 micron
Ross Top Mesh Fence System
The Roll top mesh fence is completely fence system it is conclusive of fence panel, post, gates and fastener system ,the post is fitted with M8 threaded inserts for securing panels, with a wide range of heights available. posts come inclusive of top caps.
Package and Shipping:

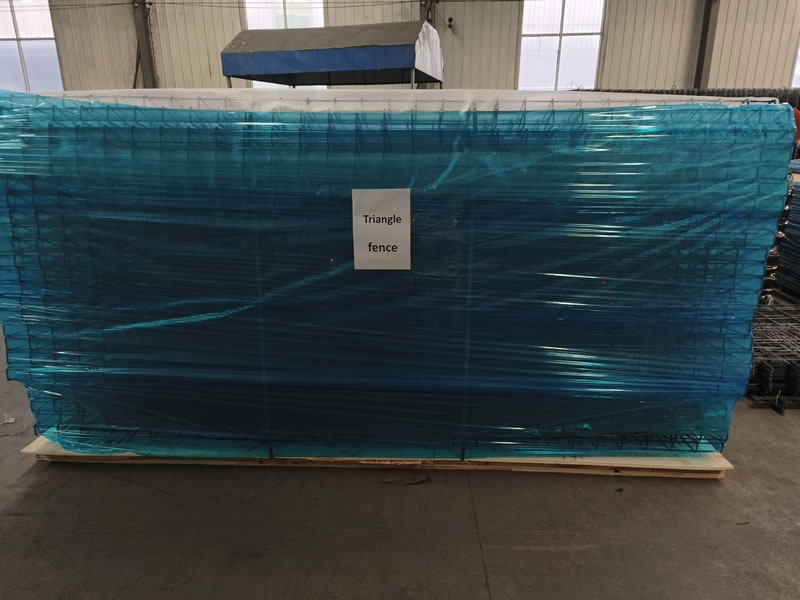

Fence panel: plastic film+wood/metal pallet
Fence post:every post pack with a plastic bag(the cap is cover the post)+metal pallet
Accessory:small plastic bag+carton box
